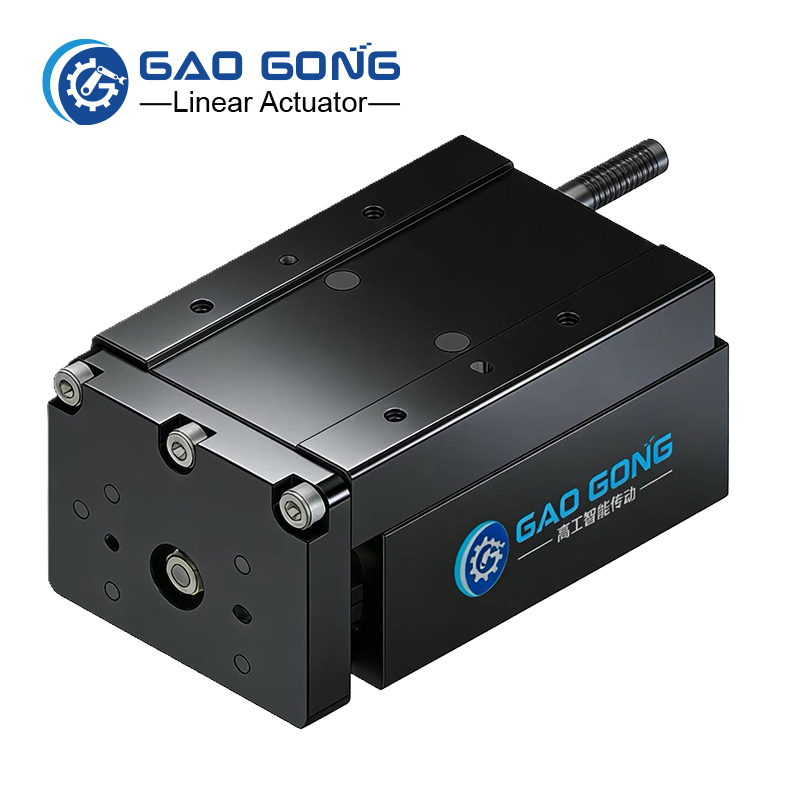

GAOGONG GCA2-50-F0 | Integrated Micro Servo Slide Actuator

Product Overview

The GAOGONG GCA2-50 is a high-precision Micro Electric Slide featuring a 50mm stroke. This "All-in-One" motion solution integrates a precision servo motor, absolute/incremental encoder, and a high-performance digital controller into one ultra-compact unit.

Designed for modular automation, it eliminates the need for external drivers and complex wiring, making it the perfect space-saving linear motion system for high-end industrial applications.

🛠 Technical Specifications (Core Parameters)

Key Performance	Lead 2mm	Lead 4mm	Lead 6mm
Max. Velocity	100 mm/s	200 mm/s	300 mm/s
Max. Horizontal Payload	10 kg	5 kg	3 kg
Max. Vertical Payload	5 kg	2.5 kg	1.5 kg
Rated Thrust	133 N	66.5 N	44 N
Repeatability	±0.005 mm	±0.005 mm	±0.005 mm
Acceleration	3000 mm/s²	3000 mm/s²	3000 mm/s²

Operating Voltage: 24VDC ± 10%
Protection Class: IP40
Motor Technology: Integrated AC Servo Motor

📊 Allowable Load Moment (GCA2-F0)

Engineered for high stability and rigid load handling:

Static (Ma/Mb/Mc): 14.1 N.m / 14.1 N.m / 6.7 N.m
Dynamic (Ma/Mb/Mc): 9.9 N.m / 9.9 N.m / 3.3 N.m

📋 Ordering Guide (Model Identification)

Example: GCA2 - F0 - I - 2 - 50 - P1 - M1 - BC

Series: GCA2 (Micro Integrated Servo Cylinder)
Guide Type: F0 (Standard Type - Cross Roller Guide for superior rigidity)
Encoder: I (Incremental) / A (Absolute)
Lead (Pitch): 2 / 4 / 6 mm
Stroke: 50 mm (Standard)
Driver Interface: P1 (Pulse Control) / P2 (Fieldbus/Modbus RTU)
Cable Exit: BC (Back) / BL (Left) / BR (Right) / BW (Bottom)

🌟 Why Global Engineers Choose GCA2?

No-Jerking Smooth Motion: Advanced servo algorithms ensure seamless starts and soft-stops, protecting delicate workpieces.
Micro-Space Optimization: 40% smaller footprint than traditional motor-driver separated systems.
Replacement for Pneumatics: A high-precision, programmable alternative to pneumatic mini cylinders.
Fieldbus Integration: Supports Modbus RTU for easy networking with industrial PCs and PLCs.

🏭 Application Industries

Semiconductor: Precision wafer handling and chip positioning.
Medical & IVD: Automated liquid handling and diagnostic equipment.
3C Electronics: Smartphone assembly, testing, and micro press-fitting.
Laboratory Automation: Precise sample transport and pipetting modules.

✉️ Engineering Support & CAD Downloads

Need 3D Models (STEP/IGS) or technical verification?
Our team provides comprehensive selection support to ensure the GCA2 fits your design perfectly.
