Electric Mini Linear Actuators

GCA2-30-F2

Model:
Description: GAOGONG GCA2 Series offers ultra-compact micro electric cylinders with an integrated drive-and-control design. Featuring repeatability and seamless motion profiles, these miniature servo actuators are ideal for 3C electronics, medical devices, and semiconductor automation. Save space and simplify wiring with GAOGONG's all-in-one linear motion solutions. Contact us for 3D CAD files and selection support!
Online ordering
Download 3D & 2D Drawings

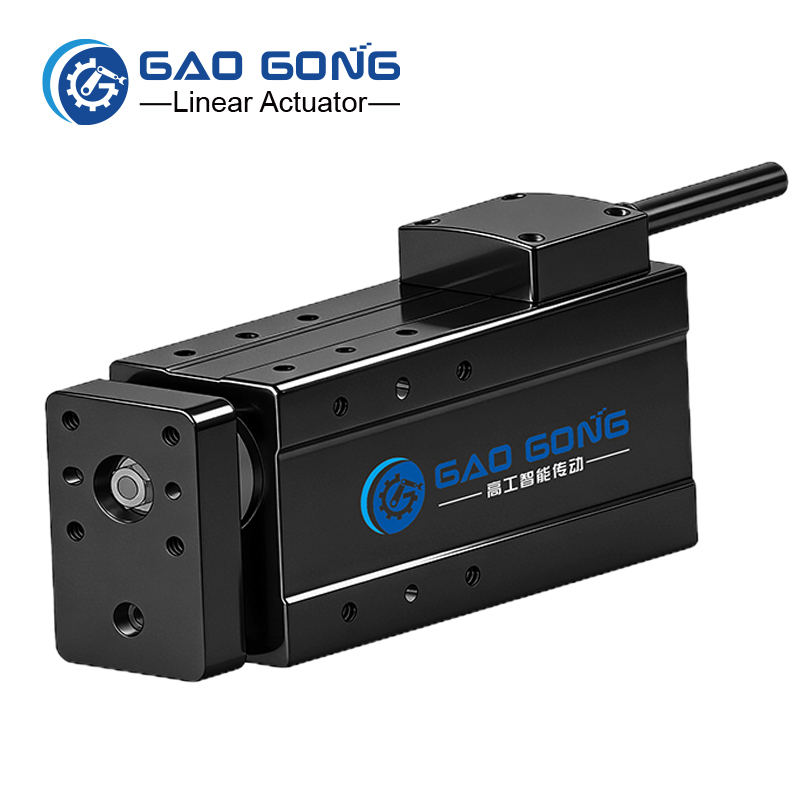

GAOGONG GCA2 Series | Micro Integrated Servo Slide Actuator

Product Overview

The GAOGONG GCA2 Series is an ultra-compact, high-performance Micro Electric Slide. It features a revolutionary Integrated Drive-and-Control system, combining a high-precision servo motor, encoder, and motion controller into a single miniature housing.

Engineered for precision automation, it eliminates external drivers, reduces cabinet space by 40%, and simplifies complex wiring. It is the ultimate high-precision alternative to traditional pneumatic mini cylinders.

🛠 Technical Specifications (Core Parameters)

Performance Parameters	Lead 2mm	Lead 4mm	Lead 6mm
Max. Velocity (mm/s)	100	200	300
Max. Horizontal Payload (kg)	10	5	3
Max. Vertical Payload (kg)	5	2.5	1.5
Rated Thrust (N)	133	66.5	44
Repeatability (mm)	±0.005	±0.005	±0.005
Acceleration/Deceleration	3000 mm/s²	3000 mm/s²	3000 mm/s²

Operating Voltage: 24VDC ± 10%
Protection Class: IP40
Motor Type: Integrated AC Servo Motor

📋 Ordering Guide (Model Identification)

Standard Configuration: GCA2 - F2 - I - 2 - 30 - P1 - M1 - BC

Series: GCA2 (Micro Integrated Servo Cylinder)
Guide Type: F2 (Compact Type - Single Linear Bushing)

Also available: F0 (Standard), F1 (Compact Cross Roller), F3/F4 (Rail Type)

Encoder: I (Incremental) / A (Absolute)
Lead (Pitch): 2 / 4 / 6 mm
Stroke: 30 / 50 mm (Customizable upon request)
Driver Interface: P1 (Pulse) / P2 (Fieldbus/Modbus RTU)
Cable Length: M1 / M2 / M3 / PX (Custom)
Exit Direction: BC (Back) / BL (Left) / BR (Right) / BW (Bottom)

🌟 Key Advantages for Global Engineers

All-in-One Design: Integrated servo driver saves significant installation space.
Jitter-Free Motion: Advanced motion profiles ensure smooth start and soft-stop, preventing mechanical impact.
High Rigidity: Optimized for precision applications, ensuring long-term stability in multi-axis systems.
Plug-and-Play: Supports Modbus RTU for easy integration with PLC and PC-based controllers.

🏭 Target Applications

Semiconductor: Wafer handling and micro-chip positioning.
3C Electronics: Precision press-fitting and smartphone assembly testing.
Medical & IVD: Automated pipetting, sampling, and laboratory diagnostics.
New Energy: Lithium battery cell alignment and stacking.

✉️ Selection Support & CAD Files

Need a 3D model (STEP/IGS) or a custom stroke?
Our application engineers are ready to assist with your specific project requirements.
[Contact Us Now for Technical Consulting & Quotes]
