Electric Mini Linear Actuators

GCA2-30-F0

Model:
Description: GAOGONG GCA2 Series offers ultra-compact micro electric cylinders with an integrated drive-and-control design. Featuring repeatability and seamless motion profiles, these miniature servo actuators are ideal for 3C electronics, medical devices, and semiconductor automation. Save space and simplify wiring with GAOGONG's all-in-one linear motion solutions. Contact us for 3D CAD files and selection support!
Online ordering
Download 3D & 2D Drawings

GAOGONG Micro Electric Cylinder Series | Miniature Integrated Servo Electric Cylinder

Product Overview

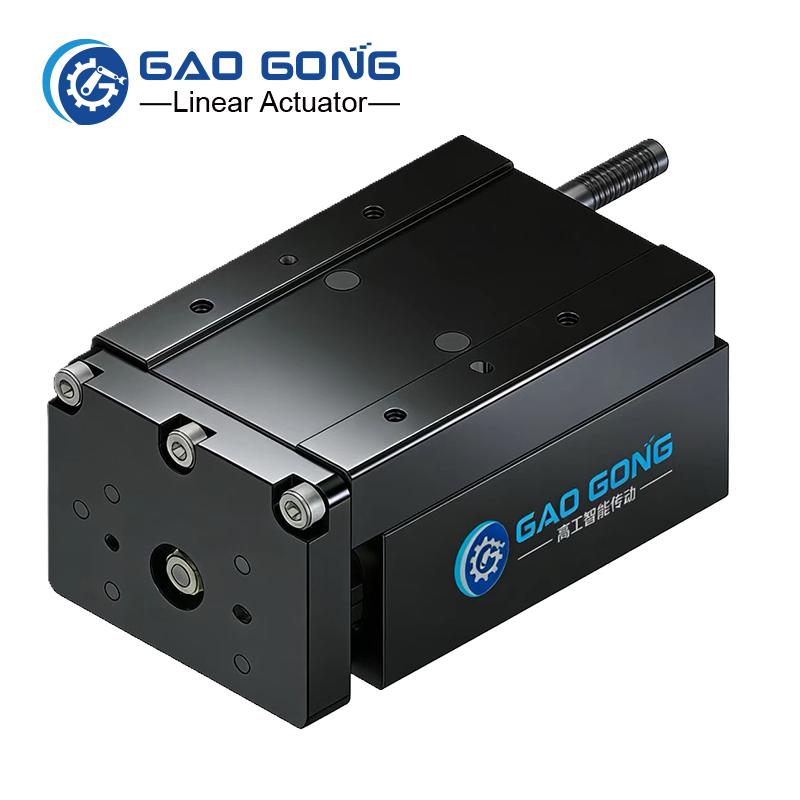

The GCA2 is an ultra-compact, high-performance Micro Electric Cylinder from GAOGONG. It features a revolutionary Integrated Drive-and-Control design, combining a precision servo motor, high-resolution encoder, and motion controller into one sleek unit.

Designed for high-speed, high-precision automation, the GCA2 series eliminates the need for external drivers, significantly saving cabinet space and simplifying wiring for global machine builders.

Technical Specifications

Performance Parameters	Spec 1 (Lead 2mm)	Spec 2 (Lead 4mm)	Spec 3 (Lead 6mm)
Max. Velocity (mm/s)	100	200	300
Max. Horizontal Payload (kg)	10	5	3
Max. Vertical Payload (kg)	5	2.5	1.5
Rated Thrust (N)	133	66.5	44
Repeatability (mm)	±0.005	±0.005	±0.005
Acceleration/Deceleration	Up to 3000 mm/s²	Up to 3000 mm/s²	Up to 3000 mm/s²

Operating Voltage: 24VDC ± 10%
Protection Class: IP40
Motor Type: Integrated AC Servo Motor

Ordering Guide (Model Identification)

Example Model: GCA2 - F1 - I - 2 - 30 - P1 - M1 - BC

Code	Category	Options & Descriptions
GCA2	Series	Micro Integrated Servo Cylinder
F1	Guide Type	F0: Standard / F1: Compact / F2: Single Bushing / F3: Rail Type / F4: Cross Roller
I	Encoder	I: Incremental / A: Absolute
2	Lead (Pitch)	2: 2mm / 4: 4mm / 6: 6mm
30	Stroke	30: 30mm / 50: 50mm (Customizable)
P1	Driver/Interface	P1: Pulse Control / P2: Fieldbus (Modbus RTU)
M1	Cable Length	M1: 1m / M2: 2m / M3: 3m / PX: Specified Length
BC	Exit Direction	BC: Back / BL: Left / BR: Right / BW: Bottom

Target Industries & Applications

GAOGONG GCA2 series is the ideal choice for "Micro-Motion" in smart factories:

3C & Electronics: Precision component press-fitting, smartphone testing, and PCB assembly.
Semiconductor: Wafer handling, micro-chip positioning, and cleanroom automation.
Medical & Lab: Automated pipetting, sampling systems, and IVD diagnostic equipment.
New Energy: Lithium battery cell alignment and tab folding.
Optics: Lens focusing and precision optical path adjustment.

Why Choose GAOGONG?

Seamless Motion: Advanced servo algorithms ensure smooth starts/stops without "jerking."
All-in-One Design: Reduces footprint by 40% compared to traditional separated systems.
High Rigidity: Utilizes premium cross-roller guides for superior load moments (Ma, Mb, Mc).

🛠 Selection & Support

Not sure which model fits your project?

For detailed 3C CAD files (STEP/IGS), technical drawings, or custom stroke configurations, please consult our customer service team. Our application engineers provide free technical support to help you optimize your motion control system.
