Electric Mini Linear Actuators

GCA2-30-F3

Model:
Description: GAOGONG GCA2 Series offers ultra-compact micro electric cylinders with an integrated drive-and-control design. Featuring repeatability and seamless motion profiles, these miniature servo actuators are ideal for 3C electronics, medical devices, and semiconductor automation. Save space and simplify wiring with GAOGONG's all-in-one linear motion solutions. Contact us for 3D CAD files and selection support!
Online ordering
Download 3D & 2D Drawings

GAOGONG GCA2-30-F3 | Micro Integrated Servo Slide Actuator

Product Overview

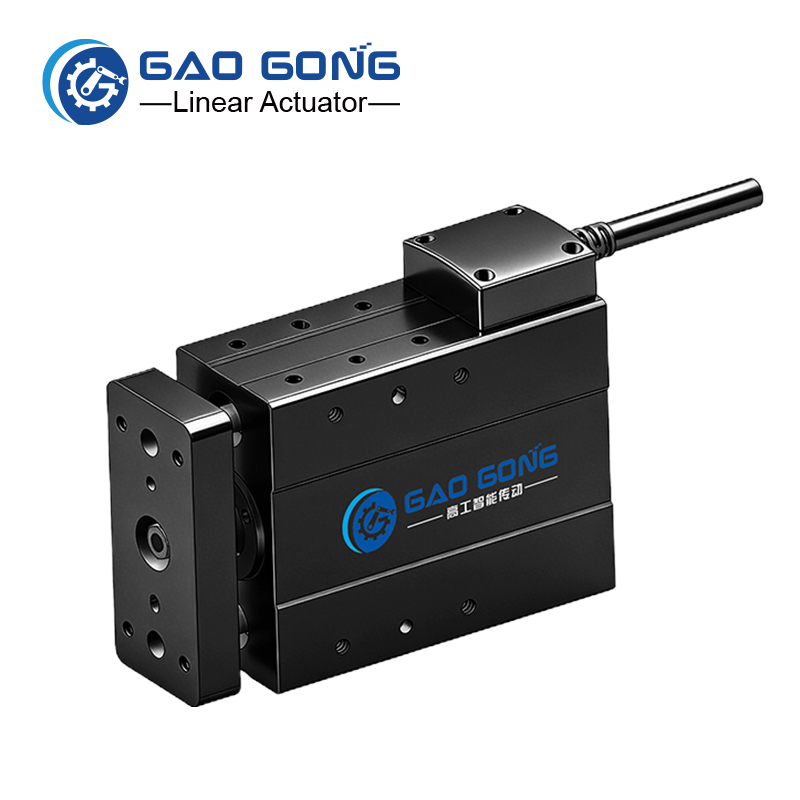

The GAOGONG GCA2-30-F3 is a high-precision, ultra-compact Micro Electric Slide featuring a 30mm stroke and a Flat-type Double Linear Bushing Guide. This all-in-one motion solution integrates a precision servo motor, absolute/incremental encoder, and a smart controller into a single miniature housing.

Designed for high-stability and space-critical automation, the GCA2-F3 eliminates external drivers and complex wiring, providing a space-saving linear motion system for advanced industrial equipment.

🛠 Technical Specifications (Core Parameters)

Key Performance Feature	Lead 2mm	Lead 4mm	Lead 6mm
Max. Velocity (mm/s)	100	200	300
Max. Horizontal Payload (kg)	10	5	3
Max. Vertical Payload (kg)	5	2.5	1.5
Rated Thrust (N)	133	66.5	44
Repeatability (mm)	±0.005	±0.005	±0.005
Acceleration/Deceleration	3000 mm/s²	3000 mm/s²	3000 mm/s²

Operating Voltage: 24VDC ± 10%
Protection Class: IP40
Motor Technology: Integrated AC Servo Motor

📋 Ordering Guide (Model Identification)

Standard Configuration: GCA2 - F3 - I - 2 - 30 - P1 - M1 - BC

Series: GCA2 (Micro Integrated Servo Cylinder)
Guide Type: F3 (Flat Type - Double Linear Bushings for enhanced stability)
Encoder: I (Incremental) / A (Absolute)
Lead (Pitch): 2 / 4 / 6 mm
Stroke: 30 mm (Standard) / 50 mm
Driver Interface: P1 (Pulse Control) / P2 (Fieldbus/Modbus RTU)
Cable Direction: BC (Back) / BL (Left) / BR (Right) / BW (Bottom)

🌟 Key Advantages for Global Engineers

Integrated Drive-and-Control: Saves 40% more space compared to traditional separated systems.
No-Jerking Smooth Motion: Advanced servo control ensures seamless starts and soft-stops, preventing mechanical impact.
High Rigidity (F3 Design): The double linear bushing structure provides superior resistance to lateral loads.
Replacement for Pneumatics: A high-precision, programmable alternative to pneumatic mini cylinders.
Plug-and-Play: Supports Modbus RTU for easy networking with industrial PCs and PLCs.

🏭 Target Industries & Applications

Semiconductor: Wafer handling, micro-chip positioning, and micro-probing.
3C Electronics: Smartphone assembly, precision testing, and part press-fitting.
Medical & IVD: Automated liquid handling, sample transport, and diagnostic modules.
New Energy: Lithium battery cell alignment and precision stacking.

✉️ Engineering Support & CAD Downloads

Need 3D Models (STEP/IGS) or technical selection support?
Our team of application engineers provides free technical consulting and selection tools.
[Inquiry Now for Selection Support & Quotation]
