GCA2-30-F4

Model:
Description: GAOGONG GCA2 Series offers ultra-compact micro electric cylinders with an integrated drive-and-control design. Featuring repeatability and seamless motion profiles, these miniature servo actuators are ideal for 3C electronics, medical devices, and semiconductor automation. Save space and simplify wiring with GAOGONG's all-in-one linear motion solutions. Contact us for 3D CAD files and selection support!
Online ordering
Download 3D & 2D Drawings

GAOGONG GCA2-30-F4 | Micro Integrated Servo Slide Actuator

Product Overview

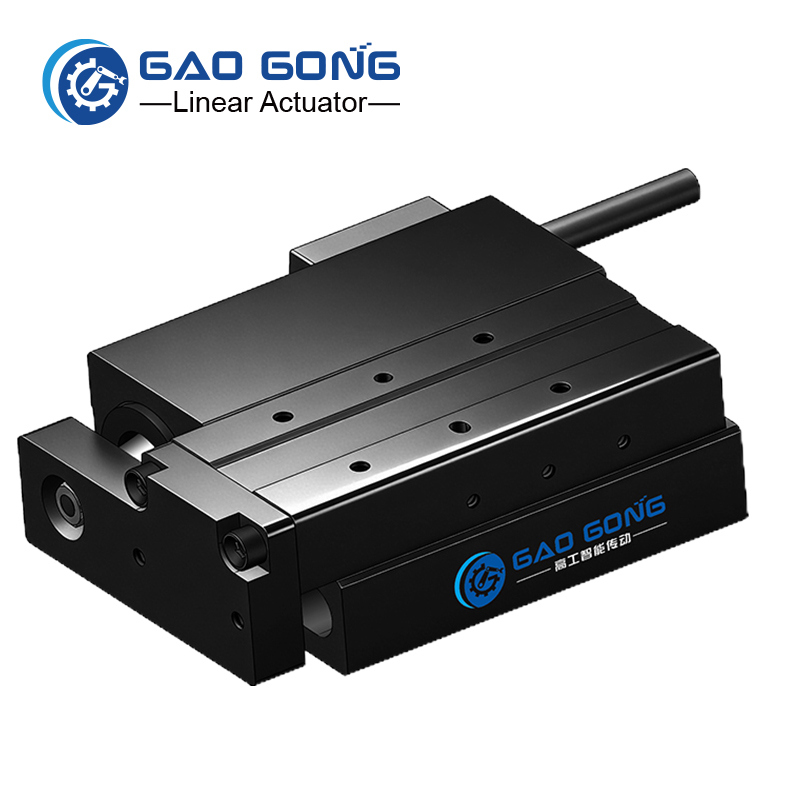

The GAOGONG GCA2-30-F4 is a high-precision, ultra-compact Micro Electric Slide featuring a 30mm stroke and a Flat-type Cross Roller Guide. This all-in-one motion solution seamlessly integrates a precision servo motor, absolute/incremental encoder, and a digital controller into a single miniature housing.

Designed for high-load stability and space-constrained automation, the GCA2-F4 provides a space-saving linear motion system with superior rigidity, making it the premier choice for advanced industrial equipment.

🛠 Technical Specifications (Core Parameters)

Key Performance Feature	Lead 2mm	Lead 4mm	Lead 6mm
Max. Velocity (mm/s)	100	200	300
Max. Horizontal Payload (kg)	10	5	3
Max. Vertical Payload (kg)	5	2.5	1.5
Rated Thrust (N)	133	66.5	44
Repeatability (mm)	±0.005	±0.005	±0.005
Acceleration/Deceleration	3000 mm/s²	3000 mm/s²	3000 mm/s²

Operating Voltage: 24VDC ± 10%
Protection Class: IP40
Motor Technology: Integrated AC Servo Motor

📋 Ordering Guide (Model Identification)

Standard Configuration: GCA2 - F4 - I - 2 - 30 - P1 - M1 - BC

Series: GCA2 (Micro Integrated Servo Cylinder)
Guide Type: F4 (Flat Type - Cross Roller Guide for Maximum Rigidity)
Encoder: I (Incremental) / A (Absolute)
Lead (Pitch): 2 / 4 / 6 mm
Stroke: 30 mm (Standard) / 50 mm
Driver Interface: P1 (Pulse Control) / P2 (Fieldbus/Modbus RTU)
Cable Direction: BC (Back) / BL (Left) / BR (Right) / BW (Bottom)

🌟 Key Advantages for Global Engineers

Integrated Drive-and-Control: Reduces machine footprint by up to 40% by eliminating external drivers.
No-Jerking Smooth Motion: Advanced servo profiles ensure seamless starts and soft-stops, protecting delicate parts from impact.
Superior Rigidity (F4 Design): The flat-type cross roller guide offers exceptional resistance to moment loads (Ma, Mb, Mc).
Precision Alternative to Pneumatics: A programmable, high-repeatability alternative to pneumatic mini cylinders.
Easy Integration: Supports Modbus RTU for direct communication with PLCs and industrial PCs.

🏭 Target Industries & Applications

Semiconductor: Precision wafer handling, micro-chip positioning, and automated probing.
3C Electronics: Smartphone assembly, automated optical inspection (AOI), and micro press-fitting.
Medical & IVD: Automated liquid handling, sample transport, and diagnostic instrument modules.
New Energy: Lithium battery tab folding and precision cell alignment.

✉️ Engineering Support & CAD Downloads

Need 3D Models (STEP/IGS) or custom motion profiles?
Our application engineers provide comprehensive selection support and technical documentation for global projects.
[Inquiry Now for Selection Support & Quotation]
