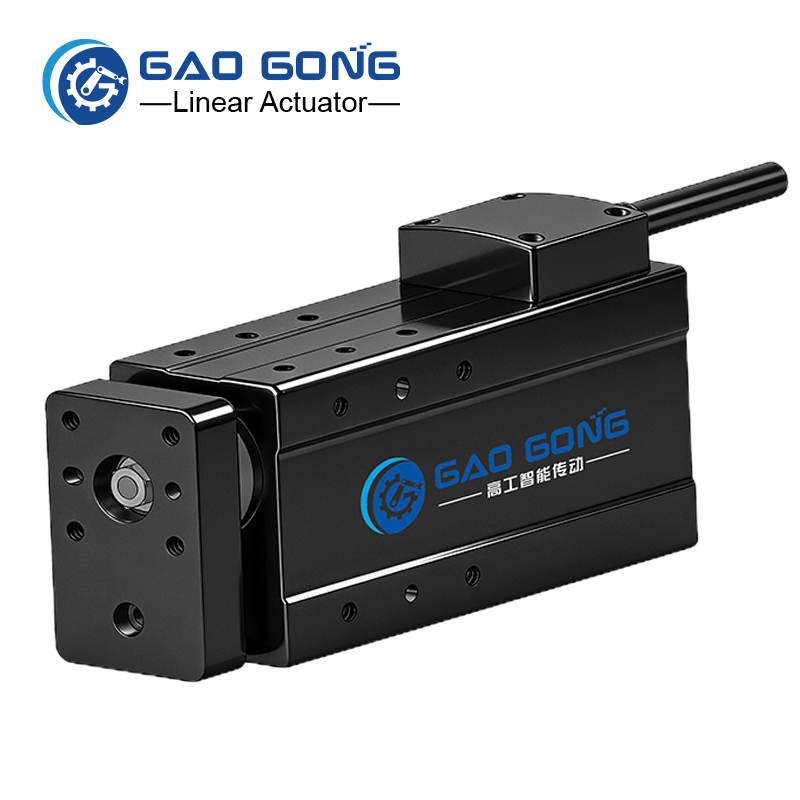

GAOGONG GCA2-50-F2 | Integrated Micro Servo Slide Actuator

Product Overview

The GAOGONG GCA2-50-F2 is a precision Micro Electric Slide with a 50mm stroke. This "All-in-One" motion solution features an Integrated Drive-and-Control system, combining a precision servo motor, absolute/incremental encoder, and high-performance digital controller into one ultra-compact unit.

The F2 model utilizes a Single Linear Bushing Guide, offering a cost-effective yet high-precision solution for space-saving linear motion in high-end industrial automation.

🛠 Technical Specifications (Core Parameters)

Key Performance	Lead 2mm	Lead 4mm	Lead 6mm
Max. Velocity (mm/s)	100	200	300
Max. Horizontal Payload (kg)	10	5	3
Max. Vertical Payload (kg)	5	2.5	1.5
Rated Thrust (N)	133	66.5	44
Repeatability (mm)	±0.005	±0.005	±0.005
Acceleration	3000 mm/s²	3000 mm/s²	3000 mm/s²

Operating Voltage: 24VDC ± 10%
Protection Class: IP40
Motor Technology: Integrated AC Servo Motor

📋 Ordering Guide (Model Identification)

Standard Configuration: GCA2 - F2 - I - 2 - 50 - P1 - M1 - BC

Series: GCA2 (Micro Integrated Servo Cylinder)
Guide Type: F2 (Compact Type - Single Linear Bushing)
Encoder: I (Incremental) / A (Absolute)
Lead (Pitch): 2 / 4 / 6 mm
Stroke: 50 mm
Driver Interface: P1 (Pulse) / P2 (Fieldbus/Modbus RTU)
Cable Length: M1 / M2 / M3 / PX (Customizable)
Exit Direction: BC (Back) / BL (Left) / BR (Right) / BW (Bottom)

🌟 Key Advantages for Global Engineers

Integrated Drive-and-Control: Saves up to 40% cabinet space by eliminating external servo drivers.
Jitter-Free Smooth Motion: Advanced motion profiles ensure seamless starts and soft-stops, protecting delicate parts from impact.
Micro-Space Optimization: Ultra-compact design, ideal for multi-axis modular machine designs.
Replacement for Pneumatics: A programmable, high-precision alternative to pneumatic mini cylinders.
Fieldbus Ready: Supports Modbus RTU (P2 option) for easy integration with PLCs and industrial PCs.

🏭 Target Applications

Semiconductor: Precision wafer handling, micro-chip positioning, and micro-probing.
3C Electronics: Smartphone assembly, micro press-fitting, and AOI testing.
Medical & IVD: Automated liquid handling, sample transport, and diagnostic instrument modules.
Laboratory Automation: Precise sample transport and automated pipetting modules.

✉️ Engineering Support & CAD Downloads

Need 3D Models (STEP/IGS) or technical verification?
Our application engineers provide comprehensive selection support to ensure the GCA2-50 fits your design perfectly.
[Inquiry Now for Selection Support & Quotation]
