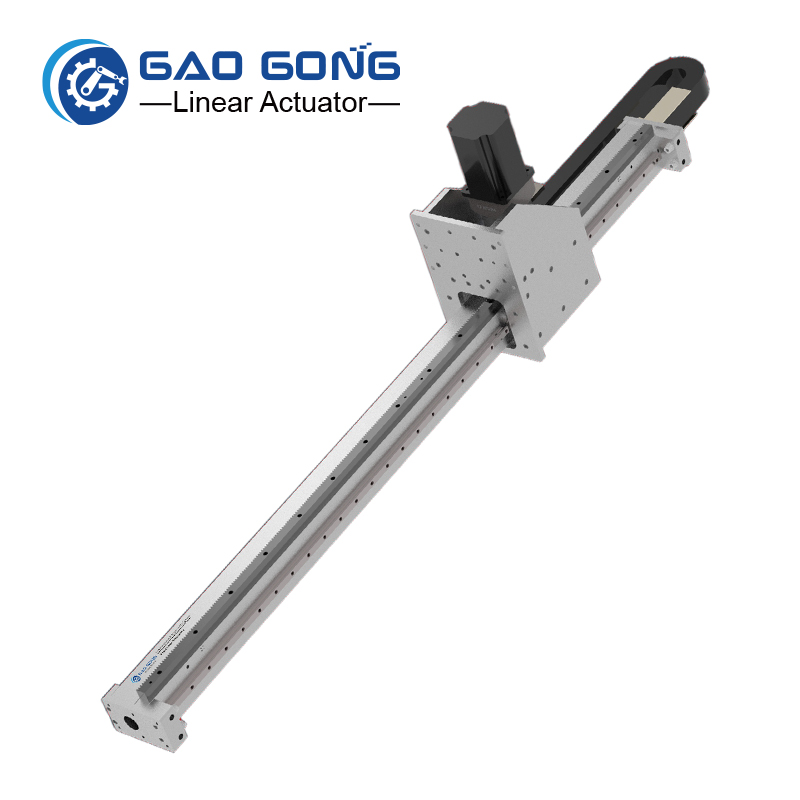

• Gaogong GZH100 Rack-and-Pinion Linear Module

• Medium-load long-stroke linear actuator for industrial automation

• Product Overview

• The GZH100 rack-and-pinion linear module is designed for medium-load, long-stroke, and high-speed industrial applications.
• It is widely used in automation equipment requiring stable performance, compact size, and long travel.
• The GZH series includes GZH60, GZH80, GZH100, GZH178, and GZH210, covering a full range of load and stroke requirements for different industries.

• Differentiated Highlights

• Optimized for medium-load applications where speed and stability must be balanced.
• Compact body width with high rigidity, ideal for equipment with limited installation space.
• Dual 20×15.5 linear guides ensure smooth motion even under continuous operation.
• Lower inertia compared to larger models, enabling faster acceleration and deceleration.
• Perfect match for pick-and-place, labeling, inspection, and electronics assembly equipment.
• More cost-efficient than heavy-duty models while maintaining industrial-grade durability.

• Key Features

• Long stroke range 500–2850 mm
• Maximum speed 8150 mm/s
• Gear lead 173 mm
• Load capacity 20 kg
• High-rigidity linear guide 20×15.5 mm
• Helical or straight gear rack
• Vertical motor mount
• Compatible with global servo brands
• Repeatability ±0.1 mm
• Optional home and limit sensors

• Technical Specifications

• Model GZH100
• Gear rack type Helical or straight
• Gear lead 173 mm
• Stroke 500–2850 mm
• Speed 8150 mm/s
• Load 20 kg
• Gearbox frame 90 mm
• Linear guide 20×15.5 dual rail
• Repeatability ±0.1 mm
• Motor mount vertical
• Sensor options home sensor and limit sensor

• Ordering Code

• GZH100–X173–500–U–R90–C4–0001

• Model GZH100
• Gear rack X helical or Z straight
• Lead 173 mm
• Stroke 500–2850 mm
• Motor position U vertical
• Gearbox frame R90
• Home sensor C motor side or D opposite side or E none
• Limit sensor 3 or 4 or 5 none
• Special code 0001

• Application Fields

• Industrial automation
• Medium-load gantry robots
• Pick-and-place systems
• CNC automation
• Woodworking and panel processing
• Packaging and labeling equipment
• Laser engraving and marking
• Electronics assembly and inspection
• Lithium battery production lines
• Semiconductor auxiliary equipment
• Conveyor and transfer systems
• Automated testing machines
• Small palletizing and sorting systems

• FAQ

• Q: What is the main advantage of the GZH100 compared to GZH60 or GZH80
A: GZH100 offers higher rigidity and longer stroke capability, making it suitable for medium-load applications requiring both speed and stability.

• Q: Can the GZH100 be used for high-speed pick-and-place
A: Yes. Its lower inertia and compact design make it ideal for fast-cycle automation tasks.

• Q: Does the GZH100 support custom stroke lengths
A: Yes. Stroke can be customized within the 500–2850 mm range in 50 mm increments.

• Q: Can it be mounted vertically
A: Yes. The structure supports horizontal, vertical, and angled installation depending on load direction.

• Q: Is the GZH100 compatible with Mitsubishi, Yaskawa, or Delta servo motors
A: Yes. The motor mount and gearbox interface support mainstream global servo brands.

• Engineering Support

• If you need model selection support, 2D drawings, 3D CAD files, or non-standard customization, please contact us directly.
• For smaller or larger load requirements, you may also check our other models GZH60–GZH80–GZH100–GZH178–GZH210.
