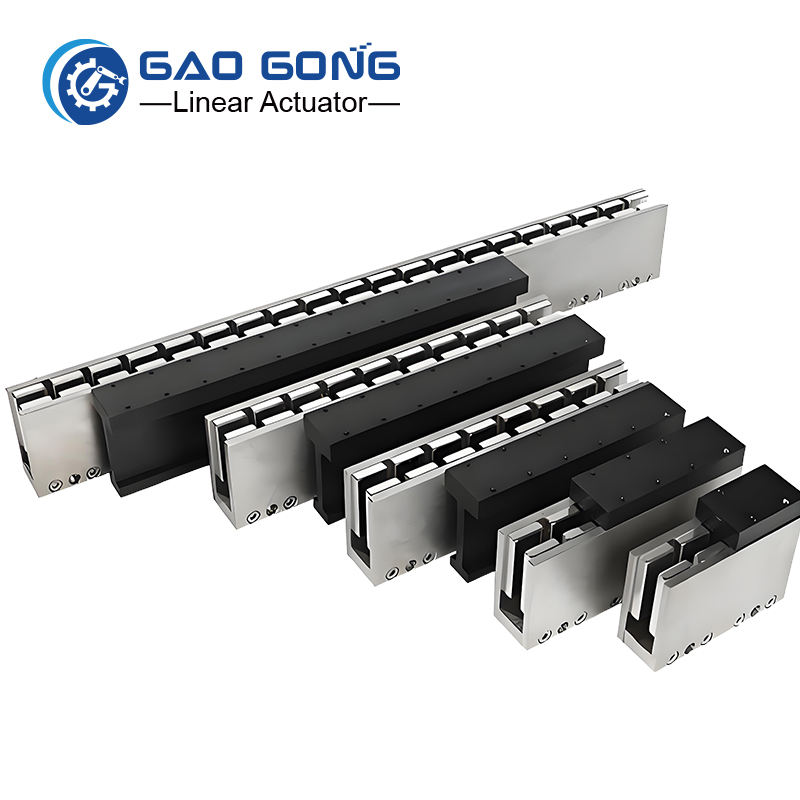

GAOGONG Coreless Linear Motor Series

Overview

The GAOGONG Coreless Linear Motor Series (GGUI3 / GGUI4 / GGUI5 / GGU6H / GGUI5-PN / GGU5/S-P) delivers advanced linear motion solutions across a wide spectrum of industries. With an ironless coil design, these actuators achieve high thrust density, smooth linear motion, and precise positioning without cogging effects. They are widely applied in semiconductor manufacturing, CNC automation, robotics, packaging machinery, electronics assembly, inspection systems, laser processing, lithium battery production, medical devices, aerospace precision systems, automotive manufacturing, smart logistics, and optical research.

Model Range

• GGUI3 Series: Compact models (SP-S1 / S2 / S3) with peak thrust up to 546.5 N, ideal for light and medium precision automation.

• GGUI4 Series: Example GGUI4-P/S-51, peak thrust up to 3344 N, suitable for mid-to-large automation systems and robotic platforms.

• GGUI5 Series: Includes GGUI5-P/5x1 / 5x2 / 5x7 / 5x8 and GGUI5-L120 / L180 / L240 / L300 / L420, covering different torque and length requirements for CNC and packaging equipment.

• GGU5/S-P Series: Models S2 / S3 / S4 / S5, rated thrust from 200 N to 580 N, designed for compact precision devices and inspection systems.

• GGU5-PN Series: Models PN65 / PN63 / PN61 / PN59, rated thrust up to 600 N, repeat positioning accuracy ±0.01 mm, ideal for high-speed and high-precision semiconductor and optical applications.

• GGU6H Series: Models S2 / S3 / S4 / S5, rated thrust from 111 N to 279.5 N, optimized for medium-load robotics and automation tasks.

Technical Advantages

• Ironless Design: Eliminates cogging, ensuring smooth motion and ultra-precise positioning.

• High Thrust Density: Supports high-speed, high-acceleration automation and robotics.

• Modular Naming System: Options for S/P (single/parallel), S1–S6 sizes, H (Hall sensor), T (temperature sensor), MR (magnetic ring).

• Magnetic Rail Compatibility: Supports multiple rail lengths (TL120 / TL180 / TL240 / TL300 / TL420 / TL600) for flexible stroke requirements.

• Thermal Stability: Optimized for continuous operation with low thermal resistance and long thermal time constants.

• Global Standards: Designed for international compatibility with CE, UL, RoHS, ISO certifications, ensuring compliance across industries.

• Professional Parameters: Force constant, back EMF, inductance, resistance, and dynamic response optimized for engineering integration.

Application Fields

• Semiconductor wafer handling & precision positioning

• CNC machining centers & automation platforms

• Robotics and gantry systems

• Packaging machinery & conveyor automation

• Electronics assembly & inspection equipment

• Laser cutting, engraving, and precision machining

• Lithium battery production lines & high-speed transfer systems

• Optical inspection, metrology, and scientific research

• Medical devices & laboratory automation

• Aerospace precision systems & satellite component handling

• Automotive manufacturing & EV battery assembly

• Smart logistics & automated warehouse systems

Technical Support & Contact

For detailed specifications, model selection, and technical support, please contact GAOGONG Intelligent Transmission.
Our engineering team provides application consulting, customization guidance, and selection assistance to ensure seamless integration into your automation systems.

Conclusion

The GAOGONG Coreless Linear Motor Series offers a complete model matrix (GGUI3 / GGUI4 / GGUI5 / GGU6H / GGU5-PN / GGU5/S-P), delivering global compatibility, long service life, and reliable performance for advanced automation, robotics, semiconductor, packaging, medical, aerospace, automotive, and precision manufacturing industries.
