GTH6A Linear Module | High‑Speed Ball Screw Actuator

Compact · High‑Rigidity · Industrial‑Grade Performance

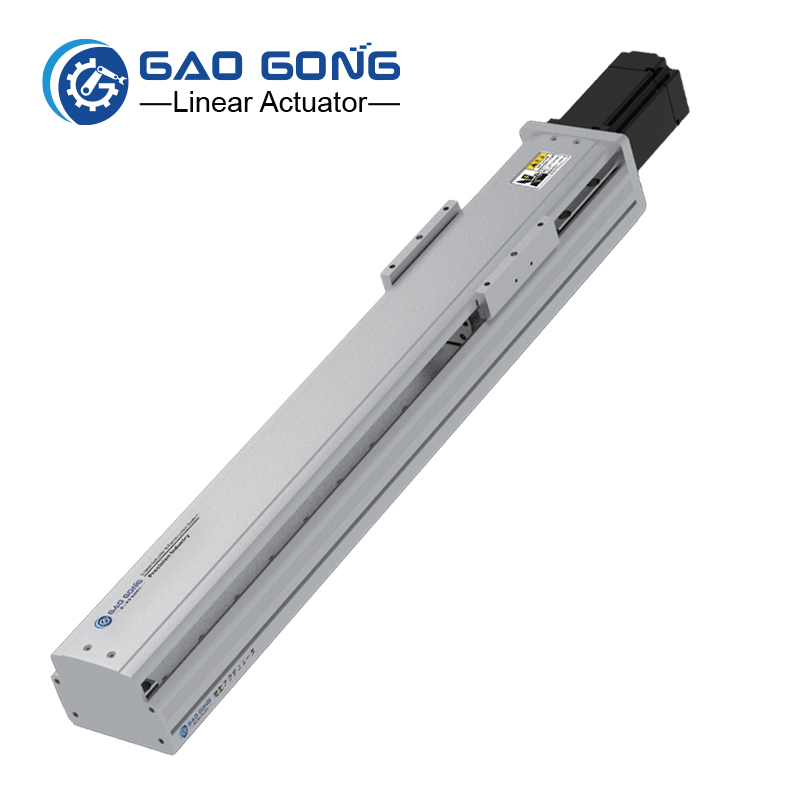

The GTH6A is a compact ball‑screw linear module designed for precision automation. It provides stable motion, strong rigidity, and long service life for demanding industrial applications.

Core Technical Features

• Compact 65 mm body width suitable for small automation equipment

• High rigidity and stable motion for long‑term industrial operation

• Compatible with Mitsubishi, Panasonic, Delta, and Yaskawa servo motors

• Stroke configurable up to 1000 mm in 50 mm increments

GTH Series Model Range (Quick Overview)

Small Size:
GTH6A (65 mm), GTH7A (75 mm), GTH9A (90 mm)

Medium Size:
GTH10 (102 mm), GTH12 (102 mm), GTH13 (135 mm), GTH14 (135 mm),
GTH12A (120 mm), GTH14A (140 mm)

Large Size:
GTH17 (170 mm), GTH22 (220 mm), GTH17M (170 mm long‑stroke), GTH22M (220 mm long‑stroke)

Technical Specifications

Ordering Code Guide

Example:
GTH6A‑L5‑100‑BC‑M10B‑C4‑0001

Code Breakdown

• GTH6A — Model

• L5 / L10 / L20 / L32 — Ball screw lead

• 50–1000 — Stroke (50 mm increments)

Motor Position (BC / BL / BR / BM)

• BC — Motor Exposed

• BM — Motor Bottom Side

• BL — Motor Left Side

• BR — Motor Right Side

• M / P / T / Y + Power — Motor brand & output

• B — With brake

Home Sensor + Limit Sensor Combinations

• 0001 — Special order code

Application Fields

• Electronics manufacturing and PCB automation

• Semiconductor handling and precision positioning

• Inspection and measurement equipment

• Medical device automation

• Packaging, labeling, and light‑duty logistics

• 3C assembly lines (phones, tablets, wearables)

• Laboratory automation and compact robotic systems

• Multi‑axis platforms and small gantry systems
