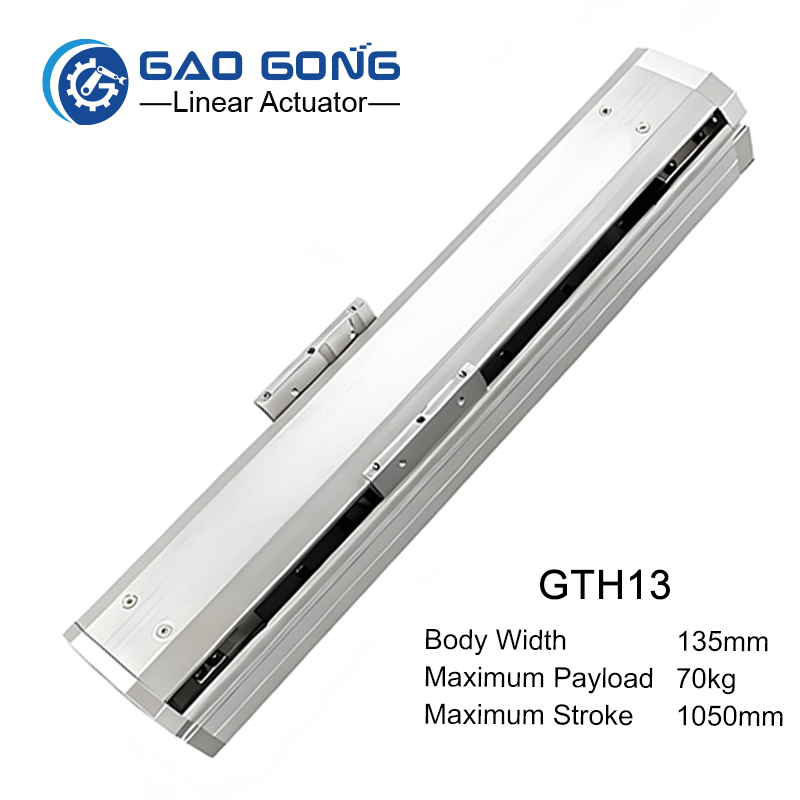

The GTH13 is a medium‑large, high‑rigidity ball‑screw linear module designed for automation systems requiring strong load capacity, long‑stroke stability, and high‑precision linear motion.
135 mm body width for medium‑large automation platforms
High rigidity structure suitable for heavy fixtures and precision assembly
Compatible with Mitsubishi, Panasonic, Delta, and Yaskawa servo motors
Stroke configurable up to 1050 mm in 50 mm increments
Supports high‑power servo motors up to 400W
Small Size:
GTH6A (65 mm), GTH7A (75 mm), GTH9A (90 mm)
Medium Size:
GTH10 (102 mm), GTH12B (102 mm), GTH12A (120 mm),
GTH13 (135 mm), GTH14 (135 mm), GTH14A (140 mm)
Large Size:
GTH17 (170 mm), GTH22 (220 mm), GTH17M (170 mm long‑stroke), GTH22M (220 mm long‑stroke)
| Item | Specification |
|---|---|
| Position Repeatability | ±0.01 mm |
| Ball Screw Lead | 5 / 10 / 20 / 32 mm |
| Max Speed | 250 / 500 / 1000 / 1500 mm/s |
| Max Payload (Horizontal) | 70 / 47 / 24 / 13 kg |
| Max Payload (Vertical) | 17 / 12 / 6 / – kg |
| Rated Thrust | 1388 / 694 / 433 / 347 N |
| Stroke Range | 50–1050 mm (50 mm pitch) |
| Motor Output | Servo Motor (100W / 200W / 400W), Stepper Motor (NEMA 17 / NEMA 23 / NEMA 34) |
| Ball Screw Diameter | C7 Ø16 mm |
| Linear Guide | 15 × 12.5 mm |
| Coupling Size | 10 × 14 mm (customizable for motor shaft adaptation) |
| Home Sensor | EE‑SX672 / EE‑SX674 (NPN/PNP) |
Example:GTH13‑L5‑100‑BC‑M40B‑C4‑0001
GTH13 — Model
L5 / L10 / L20 / L32 — Ball screw lead
50–1050 — Stroke (50 mm increments)
M — Motor Built‑in
BC — Motor Exposed
BM — Motor Bottom Side
BL — Motor Left Side
BR — Motor Right Side
M / P / T / Y + Power — Motor brand & output
B — With brake
| Home Sensor Position | Limit Sensor Quantity | Combined Code |
|---|---|---|
| C (Motor Side) | 1 PC / 2 PC / None | C3 / C4 / C5 |
| D (Opposite Side) | 1 PC / 2 PC / None | D3 / D4 / D5 |
| E (No Home Sensor) | 1 PC / 2 PC / None | E3 / E4 / E5 |
0001 — Special order code
Heavy‑duty linear motion platforms for assembly, inspection, and tooling
Medium‑large gantry systems and XY stages using ball screw linear modules
Semiconductor, automation, and measurement equipment requiring high stiffness
Robotics integration for higher‑payload single‑axis robot applications
Packaging, logistics, and material‑handling systems with long‑stroke demands
Industrial fixtures and automated jigs requiring stable high‑load performance
