GTB Series Semi-Enclosed Belt-Driven Linear Modules

GTB12A

Model:
Description: The GTB12A is a high‑speed, belt‑driven linear module designed for compact automation applications requiring long stroke, lightweight construction, and smooth motion. It is ideal for pick‑and‑place units, inspection systems, and multi‑axis Cartesian robots, delivering reliable performance for general industrial automation environments.
Online ordering
Download 3D & 2D Drawings

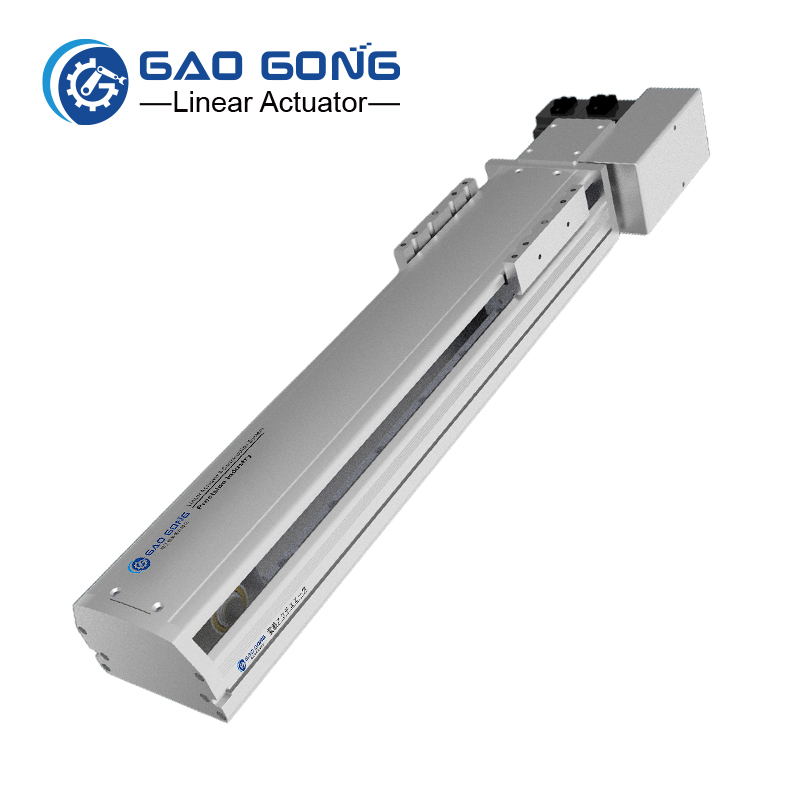

GTB12A Semi-Enclosed Belt-Driven Linear Module

Standard Environment · Ultra-High Speed · Heavy Duty · Industrial Reliability

The GTB12A is a robust, high-performance belt-driven linear module designed for demanding industrial environments. Featuring a dual-guide rail system and a 400W motor capacity, it excels in applications requiring high speeds up to 2000 mm/s and payloads up to 20 kg over long distances.

Core Technical Features

Extended Stroke Capability: Supports a maximum travel range of up to 3050 mm.
Ultra-High Speed: Optimized for rapid-fire positioning and throughput, reaching speeds up to 2000 mm/s.
Dual-Guide Stability: Utilizes two high-rigidity linear guides for superior moment resistance and stability.
Flexible Motor Orientations: Supports 6 different motor mounting positions including side-folding and upper/lower configurations.
High Rigidity: Constructed with high-strength aluminum profiles to minimize deflection over long spans.
Universal Motor Support: Compatible with 400W AC servo motors from Panasonic, Delta, and Mitsubishi, as well as high-torque stepper motors.

GTB Series Model Range (Quick Overview)

Standard Environment/Belt-Driven Modules:
GTB10 · GTB14 · GTB12A · GTB14A · GTB17 · GTB22A

Technical Specifications (GTB12A Focus)

Item	Specification
Position Repeatability	±0.04 mm
Belt Lead	40 mm
Max Speed	2000 mm/s
Max Payload (Horizontal)	20 kg
Max Payload (Vertical)	Not recommended for vertical use (Belt Type)
Rated Thrust	150 N
Stroke Range	100–3050 mm (50 mm pitch)
Motor Output	AC Servo (400W) or Stepper Motor (NEMA 23/24/34)
Belt Width	25 mm
Linear Guide Size	15x12.5 mm (2 pcs)
Home Sensor	EE-SX672 (NPN) - Out Side

Ordering Code Guide

Example: GTB12A-L40-100-L-M40-C4-0001

1. Model & Lead

GTB12A — Body Width 120 mm
L40 — Belt Lead (40 mm)
100~3050 — Effective Stroke (50 mm increments)

2. Motor Position (L / LU / LD / R / RU / RD)

L / R — Motor Left / Right Side
LU / RU — Motor Upper Left / Upper Right
LD / RD — Motor Lower Left / Lower Right

3. Motor Brand & Power

P / T / M — P: Panasonic / T: Delta / M: Mitsubishi
40 — 400W Motor Capacity
S — Stepper Motor (Please specify NEMA size: 23, 24, or 34)

Home Sensor + Limit Sensor Combinations

Home Sensor Position	Limit Sensor Quantity	Combined Code
C (Outside, Motor Side)	1 PC / 2 PC / None	C3 / C4 / C5
D (Outside, Opposite Side)	1 PC / 2 PC / None	D3 / D4 / D5
E (No Home Sensor)	1 PC / 2 PC / None	E3 / E4 / E5

0001 — Special order specification code

Application Fields

High-Speed Pick & Place: Ideal for rapid sorting and assembly lines.
Large Format Scanning: Stable motion for high-speed camera or laser inspection.
Automated Palletizing: Transferring medium-weight goods over long horizontal distances.
Cross-Axis Systems: Often used as the base X-axis in multi-axis gantries.
Packaging Machinery: High-efficiency feeding and bagging operations.
