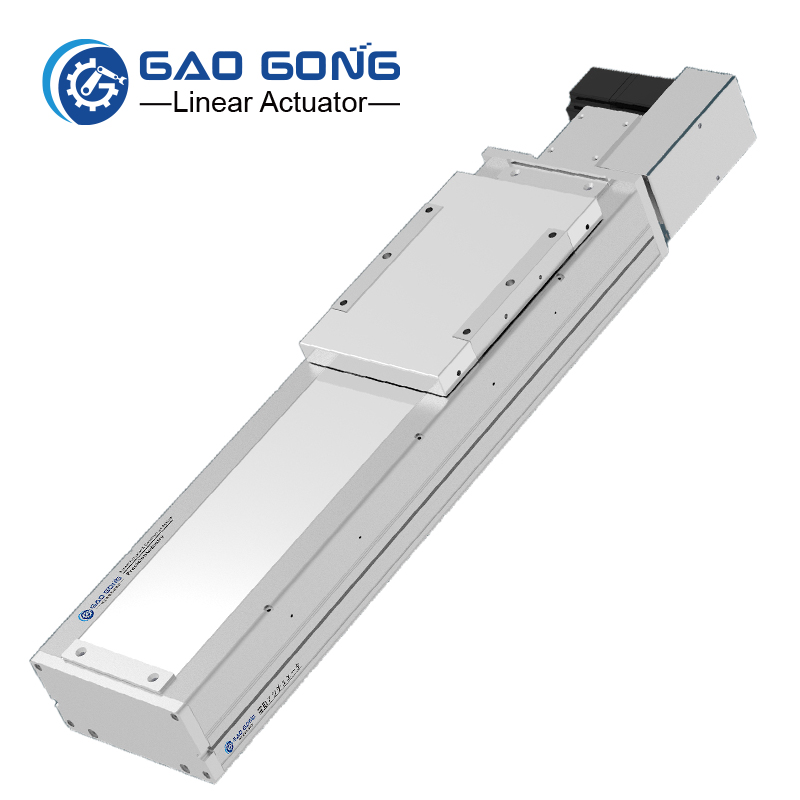

The GCB12A is a high-performance, fully-enclosed belt-driven linear module engineered for precision horizontal motion in clean room environments. Featuring a 120 mm body width and a dual-guide rail system, it offers exceptional stability and payload capacity for sensitive automation processes.
Clean Room Optimized: Fully-enclosed design specifically for low particle generation and contamination control.
Dual-Rail Stability: Utilizes two high-rigidity linear guides (15x12.5 mm) for superior moment resistance and stable high-speed motion.
Long-Stroke Capability: Supports a maximum travel range of up to 3050 mm.
High-Speed Performance: Optimized for rapid-fire positioning with speeds reaching up to 2000 mm/s.
Flexible Motor Orientations: Supports 6 different motor mounting positions, including left/right and side-folding configurations (LU/LD/RU/RD).
Broad Servo Support: Compatible with 400W AC servo motors from Panasonic, Delta, and Mitsubishi.
Clean Room Environment/Belt-Driven Modules:
GCB10 · GCB12A · GCB14 · GCB14A · GCB17 · GCB22
| Item | Specification |
|---|---|
| Position Repeatability | ±0.04 mm |
| Belt Lead | 40 mm |
| Max Speed | 2000 mm/s |
| Max Payload (Horizontal) | 20 kg |
| Max Payload (Vertical) | Not recommended for vertical use |
| Rated Thrust | 150 N |
| Stroke Range | 100–3050 mm (50 mm pitch) |
| Motor Output | AC Servo (400W) |
| Belt Width | 25 mm |
| Linear Guide Size | 15x12.5 mm (2 pcs) |
| Home Sensor | EE-SX672 (NPN) - Outside |
Example: GCB12A-L40-100-L-M40-C4-0001
GCB12A — Body Width 120 mm
L40 — Belt Lead (40 mm)
100~3050 — Effective Stroke (50 mm increments)
L / R — Motor Left / Right Side
LU / RU — Motor Upper Left / Upper Right
LD / RD — Motor Lower Left / Lower Right
P / T / M — P: Panasonic / T: Delta / M: Mitsubishi
40 — 400W Motor Capacity
S — Stepper Motor (Available by request)
| Home Sensor Position | Limit Sensor Quantity | Combined Code |
|---|---|---|
| C (Outside, Motor Side) | 1 PC / 2 PC / None | C3 / C4 / C5 |
| D (Outside, Opposite Side) | 1 PC / 2 PC / None | D3 / D4 / D5 |
| E (No Home Sensor) | 1 PC / 2 PC / None | E3 / E4 / E5 |
0001 — Special order specification code
⭐ Need Assistance? For model selection, 3D files, or custom non‑standard configurations, please contact us.
Semiconductor Manufacturing: Wafer handling and transport within particle-controlled clean rooms.
Medical Device Assembly: Contamination-free automation for assembling sensitive medical instruments.
Pharmaceutical Lab Automation: High-speed, clean transfer systems for drug screening and testing.
LCD/OLED Panel Production: Precision motion for large glass substrate handling in clean environments.
Electronics Pick & Place: Rapid sorting of sensitive electronic components where dust control is critical.
