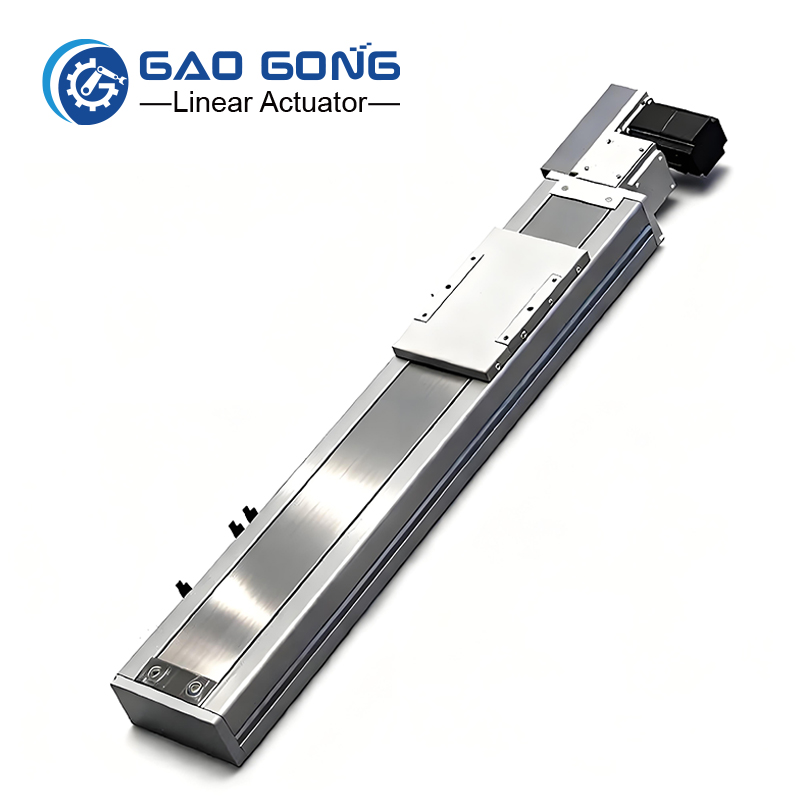

The GCB Series represents the pinnacle of clean-room motion technology. Engineered with a fully-enclosed aluminum chassis and specialized sealing components, these modules prevent the emission of friction-generated particles, making them ideal for ISO-rated clean environments where speed and reliability are paramount.
| Model | Body Width (mm) | Belt Lead (mm) | Repeatability (mm) | Max Speed (mm/s) | Max Horizontal Payload (kg) | Max Stroke (mm) | Rated Thrust (N) | Linear Guide Spec (mm) | Standard Motor (W) |
|---|---|---|---|---|---|---|---|---|---|
| GCB10 | 102 | 32 | ±0.04 | 1600 | 10 | 2550 | 61 | 20x15.5 (1 pc) | 100 / 200 |
| GCB12A | 120 | 40 | ±0.04 | 2000 | 20 | 3050 | 150 | 15x12.5 (2 pcs) | 400 |
| GCB14 | 135 | 40 | ±0.04 | 2000 | 25 | 3050 | 200 | 15x12.5 (1 pc) | 400 |
| GCB14A | 140 | 40 | ±0.04 | 2000 | 35 | 3050 | 200 | 15x12.5 (2 pcs) | 400 |
| GCB17 | 170 | 40 | ±0.04 | 2000 | 45 | 3050 | 204 | 20x15.5 (2 pcs) | 400 |
| GCB22 | 220 | 40 | ±0.04 | 2000 | 85 | 4050 | 367 | 23x18 (2 pcs) | 750 |
High-Speed Throughput: Optimized for rapid horizontal transfer, with most models reaching 2000 mm/s, significantly reducing cycle times in mass production.
Precision Repeatability: The high-tension steel-reinforced timing belt ensures a consistent repeatability of ±0.04 mm, maintaining accuracy over thousands of operational hours.
Acceleration Dynamics: Designed to handle high-G acceleration curves, making them suitable for fast-paced "pick-and-place" or "fly-cut" applications.
Fully-Enclosed Chassis: The drive mechanism is encased in a high-strength aluminum extrusion with a stainless steel sealing strip, effectively trapping internal grease vapor and belt debris.
Advanced Dual-Rail Systems: Models(and the GCB12A/GCB14/GCB14A/GCB17/22) feature a dual-guide rail configuration, providing superior moment resistance and reducing vibration at high speeds.
Corrosion Resistance: Standard components are treated for durability, ensuring compatibility with controlled industrial atmospheres.
Flexible Motor Mounting: To fit into tight equipment footprints, the series supports 6 mounting orientations (Left/Right Side-mount, and Upper/Lower Side-folding).
Multi-Brand Compatibility: Universal motor adapters are available for major servo brands including Panasonic, Mitsubishi, Delta, and Yaskawa, as well as various high-torque stepper motors.
Integrated Sensing: Each module is equipped with dedicated mounting channels for EE-SX672 (NPN/PNP) sensors to facilitate easy homing and safety limit management.
Vertical Use: The GCB series is a belt-driven system. Due to the lack of a self-locking mechanism and the potential for belt stretch under constant gravity, vertical installation is not recommended. For vertical applications, please consult our GCS/GCH Ball Screw series.
⭐ Need Assistance? Our engineering team is available to help with:
Load & Life Calculations: Ensuring the module meets your 24/7 duty cycle requirements.
3D CAD Files: Available in STEP, IGES, and SolidWorks formats for immediate design integration.
Customization: Non-standard strokes, specialized coatings, or custom motor brackets.
Please contact us for a detailed consultation.
Semiconductor Manufacturing: Wafer cassette handling, FOUP transport, and clean-room logistics.
FPD / LCD Production: High-speed positioning of large glass substrates and OLED panel inspection.
Medical & Pharmaceutical: Automated reagent filling, lab automation, and sterile medical device assembly.
High-Tech Electronics: Dust-free PCB soldering, AOI (Automated Optical Inspection) systems, and smartphone assembly lines.
Lithium Battery Production: Safe and clean transport of sensitive battery cells through drying and coating stages.
