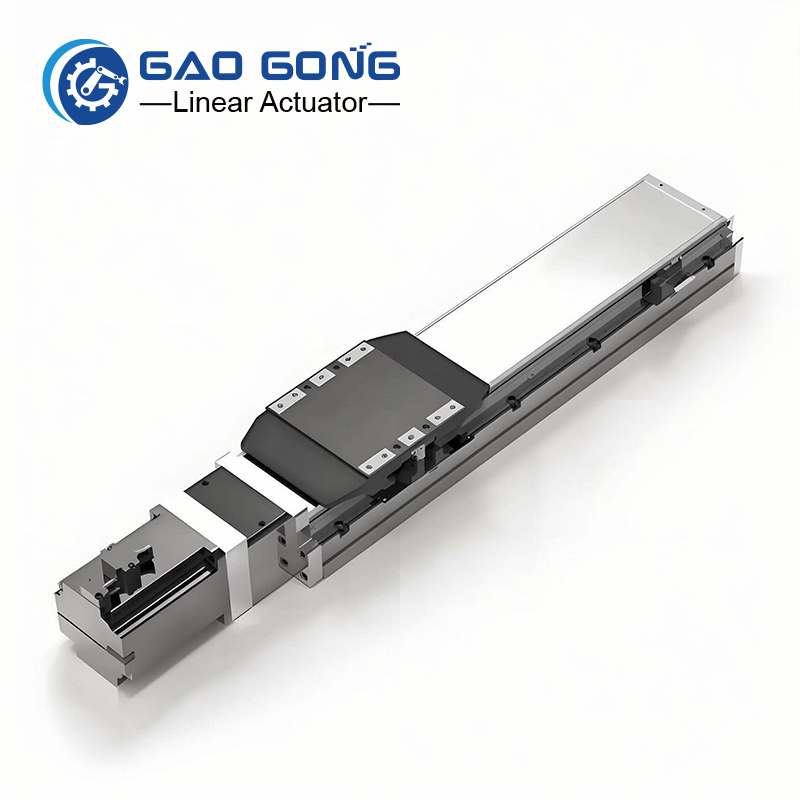

The ATH8 is a high-performance linear module featuring a cutting-edge integrated rail design (Embedded Guideway). By housing the precision guide rails directly within the high-rigidity U-shaped aluminum base, the ATH8 linear actuator achieves exceptional structural integrity and a significantly lower profile. This robust single-axis robot is engineered for high-accuracy positioning and high-load stability across diverse industrial automation platforms.
Integrated Rail Architecture: The guide rails are embedded into the base extrusion, significantly improving flatness and straightness while reducing vibration compared to standard surface-mounted linear guide designs.
High-Performance Ball Screw Drive: Utilizes professional-grade Ø16 mm ball screw technology with multiple lead options (5/10/20 mm) to balance rapid throughput and high mechanical thrust.
Reliable Positioning Accuracy: Performance is stable and consistent, delivering a high positioning repeatability of ±0.01 mm.
Enhanced Rigidity & Easy Maintenance: The specialized steel-integrated slider manages high lateral moments, while external grease nipples allow for rapid lubrication of the ball screw slide table without disassembly.
Universal Drive & Sensor Compatibility: Compatible with AC Servo Motors and Stepper Motors. The sensing system supports both NPN and PNP logic configurations to match any PLC or controller requirement.
| Model | Body Width (mm) | Max Payload (kg) | Max Stroke (mm) | Motor Compatibility |
|---|---|---|---|---|
| ATH5 | 54 | 30 | 800 | 100W Servo / NEMA 17-23 |
| ATH8 | 82 | 50 | 1050 | 200W-400W Servo / NEMA 23-24 |
| ATH10 | 102 | 70 | 1050 | 400W Servo / NEMA 24-34 |
| ATH12 | 120 | 110 | 1250 | 400W-750W Servo / NEMA 34 |
| Item | Specification |
|---|---|
| Position Repeatability | ±0.01 mm |
| Ball Screw Lead | 5 mm / 10 mm / 20 mm |
| Max Speed | 250 mm/s (Lead 5) / 500 mm/s (Lead 10) / 1000 mm/s (Lead 20) |
| Max Payload (Horizontal) | 50 kg (Lead 5) / 30 kg (Lead 10) / 12 kg (Lead 20) |
| Max Payload (Vertical) | 15 kg (Lead 5) / 8 kg (Lead 10) / 2.5 kg (Lead 20) |
| Rated Thrust | 683 N (Lead 5) / 341 N (Lead 10) / 174 N (Lead 20) |
| Stroke Range | 50–1050 mm (50 mm pitch) |
| Motor Drive Support | AC Servo (e.g., 200W/400W) or Stepper (NEMA 23/24) |
| Ball Screw Dia. | C7 Grade Ø16 mm |
| Coupling Type | Customized per Motor Shaft Diameter & Torque |
| Sensor Logic | Supports NPN or PNP (Standard: EE-SX674) |
Example: ATH8-L10-100-BC-M20B-C4-0001
ATH8 — Body Width 82 mm
L5 / L10 / L20 — Ball Screw Lead (5/10/20 mm)
50~1050 — Effective Stroke (50 mm increments)
BC — Motor Exposed (Direct-Coupled)
BM — Motor Bottom Side (Folding)
BL / BR — Motor Left / Right Side (Folding)
M / P / Y / T — Mitsubishi / Panasonic / Yaskawa / Delta
S — Stepper Motor Option (Specify NEMA size/shaft diameter)
20 / 40 — Motor Capacity (e.g., 20: 200W, 40: 400W)
B — With Brake (Omit if no brake)
Note: High-precision couplings are selected based on the specific motor shaft provided.
Home Sensor (Outside): C (Motor Side) / D (Opposite Motor Side) / E (No Sensor)
Limit Sensor (Outside): 3 (1 PC) / 4 (2 PC) / 5 (No Sensor)
Sensor Logic: Please specify NPN or PNP when ordering.
⭐ Need Assistance?
For model selection, 3D CAD files (STEP/IGS), or custom linear module configurations for unique motor shaft sizes or specific sensor requirements, please contact our engineering team.
Precision Dispensing: Professional linear actuator for adhesive application and industrial coating.
Automated Optical Inspection (AOI): Highly stable single-axis robot for industrial cameras and sensors.
Electronic Assembly: High-speed pick-and-place, screw driving, and component sorting.
Medical Lab Automation: Accurate liquid handling, reagent transport, and diagnostic imaging.
Lithium Battery Production: Reliable electric slide table for cell stacking, electrode cutting, and winding.
